NPR Tree Workflow

5.2.2: object materials versus NPR Tree

Principled NPR, NPR Surface Diffusion and NPR Rim Light live in a regular object material's Add > NPR menu; they do not require the NPR Tree described here. Outline Shell Output is also an object-material output. See Extended nodes. This release also corrects For Each Light shadow-resource bindings in deferred NPR / EEVEE Color Bake.

1. Basic Concept

NPR Tree is a second shading graph attached to a regular object material. It is used to reorganize and stylize Eevee material results in an NPR-oriented way.

The regular object material still handles the base surface shading, while the NPR Tree adds an extra NPR presentation layer on top.

2. How to Attach It

  1. Keep the normal Material Output and base shading in the regular object material.
  2. Select the Material Output node.
  3. Create or assign a node group in its NPR Tree property.

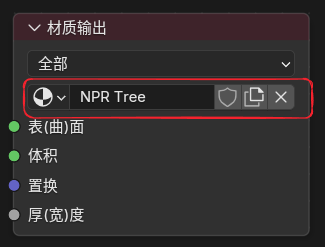

NPR Tree Slot
  1. To edit this tree, switch the Shader Editor top Shader Type to NPR.
NPR Shader Type

3. Notes

  • The material render mode needs to be set to Dithered (Deferred)
  • Ctrl + Tab can be used to switch quickly between the regular object material and the NPR tree
  • NPR Tree keyframes and drivers use a dedicated NPR Tree Action, which can be viewed, switched, or created in Material Properties > Animation > NPR Tree Action
NPR Tree Action

4. Main NPR Nodes

In addition to the dedicated NPR nodes below, Curvature, Raycast, GLSL Function, and GLSL Script Expression can also be used directly inside NPR Tree.

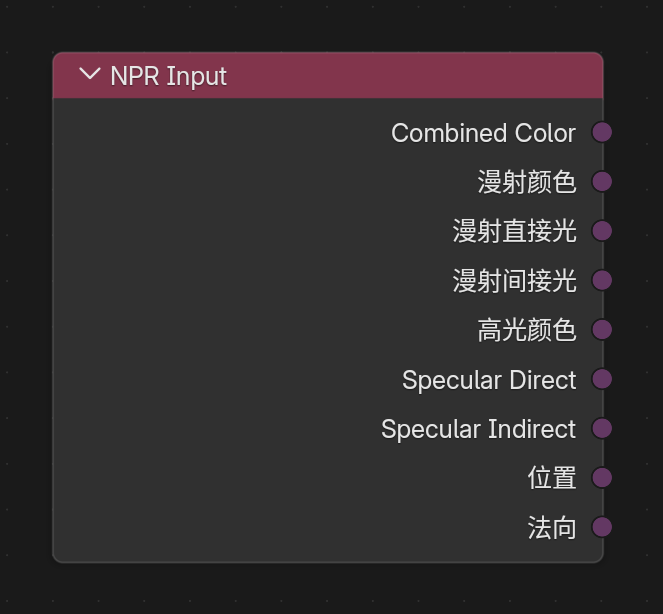

NPR Input

NPR Input

Purpose

Reads the input buffers provided by the NPR rendering stage.

Outputs

  • Combined Color
  • Diffuse Color
  • Diffuse Direct
  • Diffuse Indirect
  • Specular Color
  • Specular Direct
  • Specular Indirect
  • Position
  • Normal

These outputs are closer to image / texture handles than ordinary scalar values, so they are typically passed to Image Sample or other NPR-aware nodes for further processing.

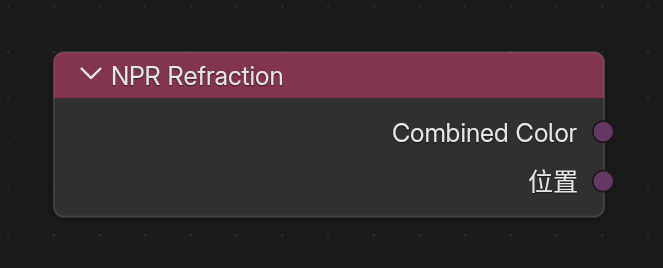

NPR Refraction

NPR Refraction

Purpose

Reads refraction-related buffers, similar in spirit to Screenspace Info. The current stable build also includes the EEVEE NPR refraction volume approximation: when volumes are present, refraction background sampling/capture is isolated from volume compositing to reduce background leaks, depth mismatches, and black-hole artifacts after Image Sample offsets.

Outputs

  • Combined Color
  • Position

Notes

  • Refraction outputs behave like image handles and are usually passed to Image Sample.
  • With volume fog / volume objects, validate viewport and final render consistency on fd9fabb4f531 or newer packages.
  • Both View and Pixel offsets on Image Sample should affect the refraction buffer; solid black results often indicate an older build.

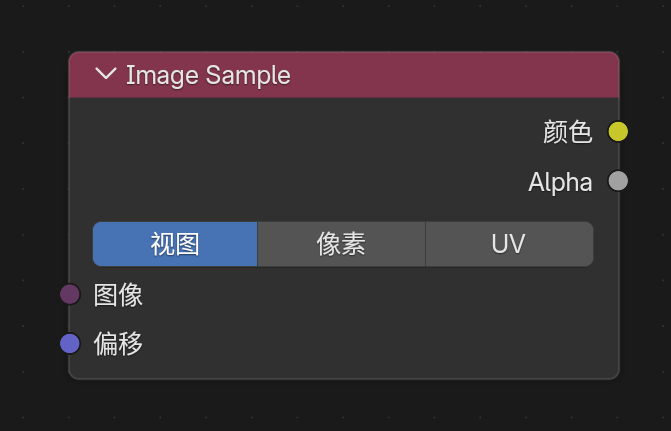

Image Sample

Entry

Add > Utilities > Image Sample

Image Sample

Inputs / Outputs

  • Inputs: Image, Offset
  • Outputs: Color, Alpha

Purpose

Samples image-style handles from NPR Input, NPR Refraction, Filter Pass Input, and similar sources.

Offset Modes

The node panel exposes three offset interpretations:

  • View: offset the sample position in view space
  • Pixel: offset in screen pixels (resolution-dependent)
  • UV: treat Offset as a UV / screen-coordinate delta for texture-space displacement sampling

With Offset unconnected, sampling uses the current pixel / UV location.

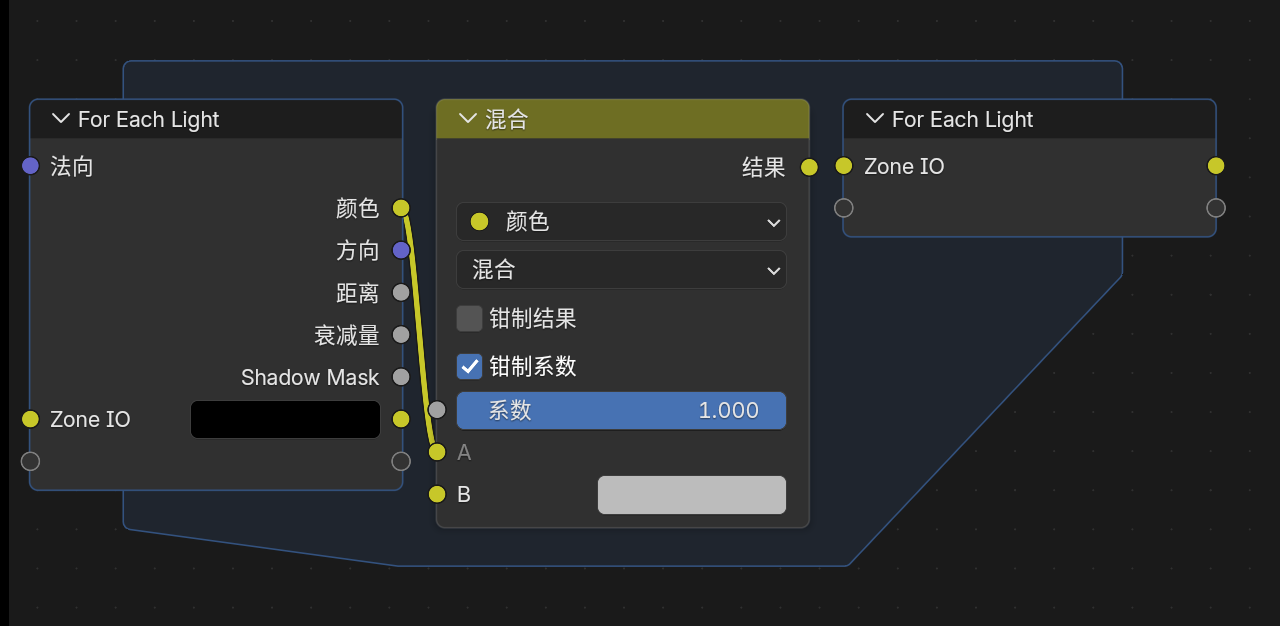

For Each Light

Entry

Add > Utilities > For Each Light

For Each Light

Notes

This node runs its internal logic once for every light affecting the current surface and outputs per-light information during each iteration.

Built-In Data

For Each Light Input currently provides:

  • Input: Normal
  • Outputs: Color, Direction, Distance, Attenuation, Shadow Mask

It also supports custom area input / output sockets so intermediate values can be passed through the per-light loop.

5. Built-In NPR Node Group Assets

This version ports a group of commonly used node groups from the Blender 4.4 NPR branch and repackages them as Blender 5.2.0 LTS-compatible assets.

Main Built-In Assets

  • Cavity
  • Co-Planar Edge Detection
  • Curvature
  • Kuwahara
  • Shading Models
  • Surface Curvature

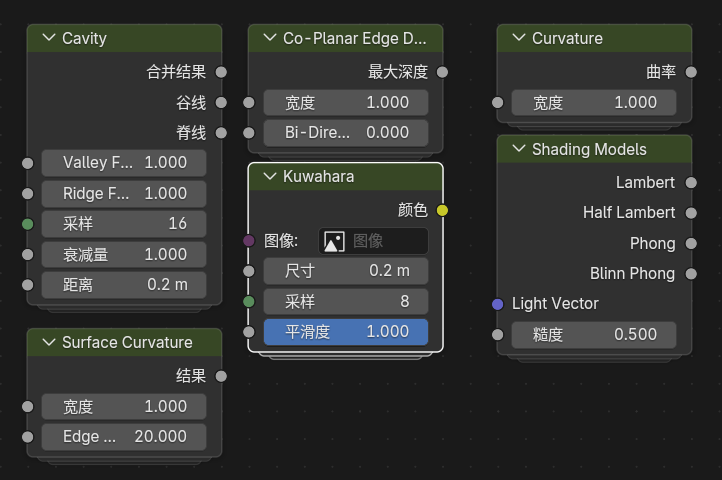

Built-in NPR node group assets
Main NPR node groups migrated to Blender 5.2.0 LTS

Asset Notes

  • These node groups have been migrated to the Blender 5.2.0 LTS format
  • Because repeat-zone node names changed, old Blender 4.4 NPR Prototype files may need to reconnect region-related nodes manually

Eevee Only

NPR Tree currently supports only Eevee, not Cycles.
